Commercial Door, Dock & Gate Operators, Accessories, and Replacement Parts
Commercial Door Operators
Committed to ongoing knowledge and training we offer you our most popular selections of openers. If you don’t see what you’re looking for reach out to our staff for more information on a product that will answer your needs.
LJ8900W - Light Duty Door Operator - MyQ Connectivity
- For use on smaller, light-duty applications
- Smart Lighting - MyQ Remote LED Light 827LM
- Wall mount for high or vertical lift sectional doors
- Automatic Door Lock 841LM
- Optional Battery Back-up 485LM
- 1 Button remote control 811LM
LJ8950W - Light Duty Operator for Rolling Doors - MyQ Connectivity
½ HP AC Belt Drive Wi-Fi Garage Door Opener Premium Series
- For use on smaller, light-duty applications
- Smart Lighting - MyQ Remote LED Light 827LM
- Wall mount for Rolling Steel/Sheet Metal Doors
- Automatic Door Lock 841LM
- Optional Battery Back-up 485LM
- 1 Button remote control 811LM
MH - Medium-Duty Hoist Operator
DC Motor, Belt Drive with Battery Back-up and Wi-Fi - Premium Series
- For use on smaller, lighter commercial doors with mid-range duty cycle requirements
- Rated duty cycle: Maximum 12 cycles per hour; Less than 50 cycles per day
- Wall mount for high or vertical lift sectional doors or small rolling doors and grilles
- Chain hoist with electric interlock for manual operation in an emergency
- UL 325-2010 Compliant
H - Industrial-Duty Hoist Operator - Logic 5.0 - MyQ Connectivity
Modifications for Carwash Openers - Damp Environments Modification for Fire Hall Openers - Control Buttons
- Optimal for industrial applications with larger sectional overhead doors
- Rated duty cycle: 25 per hour; Up to 90 cycles per day
- Side mounts to the wall for vertical or high-lift doors
- Rolling doors and grilles. Wall or hood mounts
RBH - Industrial-Duty Hoist Operator with Roller Bearings and Brake - Logic 5.0 - MyQ Connectivity
- Logic 5.0 - MyQ Connectivity
- Optimal for industrial applications with larger sectional overhead doors
- Rated duty cycle: 25 per hour; Up to 90 cycles per day
- Side mounts to the wall for vertical or high-lift doors
- Rolling doors and grilles; wall or hood mounts
GH - Gear head Industrial-Duty Hoist Operator - Logic 5.0 - MyQ Connectivity
- Logic 5.0 - MyQ Connectivity
- For use on heavy industrial, high-cycle doors. Lubricated gear system and numerous custom modifications
- Rated duty cycle: 25 per hour; Greater than 90 cycles per day
- Larger/heavier sectional overhead doors; side mounts to the wall for vertical or high-lift doors
- Larger/heavier rolling door and grilles
T - Trolley Operator - Logic 5.0 - MyQ Connectivity
- Logic 5.0 - MyQ Connectivity
- For use on standard-lift sectional overhead doors
- Rated duty cycle: 25 per hour; Up to 90 cycles per day
- Suspends from the ceiling; directly attaches to drive and control the door
APT - Apartment Trolley Operator - Logic 5.0 - MyQ Connectivity
- Logic 5.0 - MyQ Connectivity
- For use on high-cycle, sectional overhead apartment doors
- Rated duty cycle: over 100 cycles per day
- Rental & retail environments; resilient-mount motor ensures quiet operation
- Quick disconnect trolley with auto re-connect saves time and eases re-connection
HCTDCUL - Specialty Overhead Operator for Multi-Unit Residential Parking Facilities - MyQConnectivity
- Logic 5.0 - MyQ Connectivity
- Maximum door / Gate Height up to 16'
- 120/230V Single Phase
- Reliable battery back-up
- Heavy-Duty commercial gear-driven
- Noise Isolators
- Selectable speed control
- Low-Profile design
- Security2.0 Technology
Richards-Wilcox Dynahoist DC Series Openers
- Logic 5.0 - MyQ Connectivity
- DC Model 500-100 - 1/2 HP Operator with 1" Shaft
- DC Model 750-100 - 3/4HP Operator with 1" Shaft
- DC Model 750-125 - 3/4HP Operator with 1.25" Shaft
- DC Motor 1000-125 - 1HP Operator with 1.25" Shaft
- Great for Agricultural Applications - Up to 1 million cycles with minimal routine maintenance
- Standard Features Include:
- Programmable Speed - Up to 24" per second opening speed
- Integral Load Sensing and Automatic, Time Delayed, Reversing Safety Feature
- Adjustable soft stop setting
- Battery Back-UP
- Smooth & Quiet Operation
- Control Panel with Large LCD Display
- Photo Cell - UL325 Compliant
- Jackshaft or Trolley configurations
- Programmable Service Due Reminder
Commercial Operator Service
Having your business up and running for peak performance is essential. Our trained technicians are knowledgeable in all makes and models of Commercial Operators. LiftMaster commercial door operators are our chosen brand in the market. Their safety entrapment protection accessories are engineered for consistent performance and convenience – reliably working together as a complete system to give business owners peace of mind.
Commercial applications are unique and have varying requirements, and with advancements in commercial door operator technology, they’ve increased safety features and improved entrapment protection devices. We recommend Inspecting your old Commercial Operator for Safety and Performance.

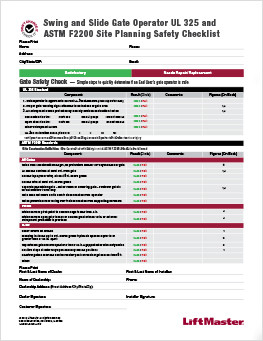

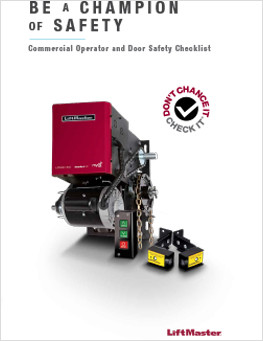

Check out our Commercial Operator & Gate Operator Safety Inspection Checklists below. Don’t Chance It, Check It!
Dock Operators
Anchor Doors & Service offers a premium quality, light-duty dock door operator that will deliver security and reliability for many different business applications, including loading and shipping docks as well as commercial and industrial applications, with MyQ Business Facility connectivity. Contact us to learn more.
DDO8900W - Light Duty Dock Door Operator - MyQ Connectivity
- For use on smaller, lighter Commercial sectional doors
- Up to 10 cycles per hour, fewer than 25 cycles per day
- Emergency release sash chain
- 3 Button control station
- ALM15 interface device monitors up to 5 external sensors (MyQ Business Facility Subscription) Remote monitoring with Smartphone Tablet or Computer
- Security 2.0 Technology
- 2 Year Warranty
- Maximum Door Size 18 x 14 or 180SqFt
Gate Operators
Swing Gate Operators
Anchor Doors & Service offers a wide range of swing gate openers for your residence or community. If you don’t see what you are looking for, contact our office for more information.
LA4000UL - 24 VDC Residential Linear Actuator - MyQ Connectivity
- 24VDC Solar Residential Linear Actuator, 120V, 1 Phase, 100 Cycles per Day
- XL Solar Control Box, Harness, Battery & Retro-Reflective Photo EYe
- Security 2.0 Radio Receiver Technology offers extended ranch with remote control
- LED Diagnostic Display
- Solar-Ready Ultra-Reliable System
- Wireless Dual-Gate Communication
- HOMELINK Compatible
- Surge Suppression
- 2 Year Warranty
LA500UL - 24VDC Residential/Light Commercial Linear Actuator
½ HP AC Belt Drive Wi-Fi Garage Door Opener Premium Series
- 24VDC Solar Residential/Light Commercial Linear Actuator, 120V/230V 1 Phase, 100 Cycles per Day
- XL Solar Control Box, Solar Panel Kit, Battery & Retro-Reflective Photo EYe
- Security 2.0 Radio Receiver Technology offers extended ranch with remote control
- LED Diagnostic Display
- Solar-Ready Ultra-Reliable System
- Wireless Dual-Gate Communication
- HOMELINK Compatible
- Surge Suppression
- 2 Year Warranty

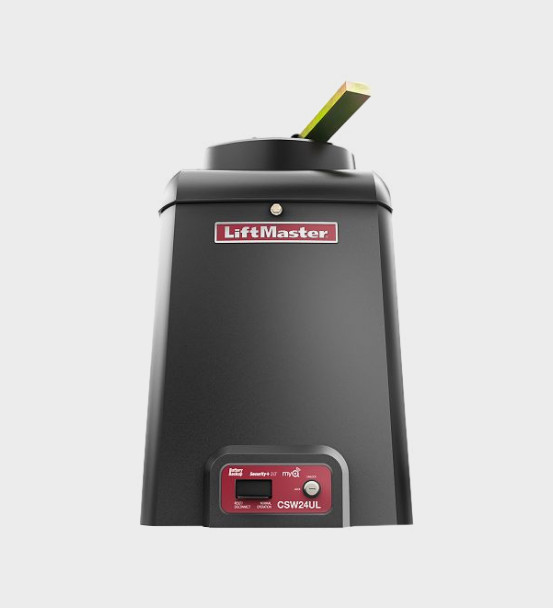

CSW24UL - 24VDC High Traffic Commercial Swing Operator for heavy-traffic swing gate applications - MyQ Connectivity
DC Motor, Belt Drive with Battery Back-up and Wi-Fi - Premium Series
- 24VDC Swing gate Operator - Commercial Grade Design
- 120/230V, 1 Phase, Optional 208/230/460/575VAC to an output voltage of 120VAC
- 13- 15 Sec / 90Deg to Open.
- Optional Heater
- Pre-Motion Warning Alarm
- Inherent Reversing sensor
- LMRRUL Monitored Photo Reflective Photo Eye
- Security 2.0 Radio Receiver Technology offers extended ranch with remote control
- LED Diagnostic Display
- Programmable Auxilliary Relays
- Solar-Ready Ultra-Reliable System
- Wireless Dual-Gate Communication
- HOMELINK Compatible
- Surge Suppression
- 7 Year Residential, 5 Year Commercial Warranty
CSW24UL - 24VDC High Traffic Commercial Swing Operator for heavy-traffic swing gate applications - MyQ Connectivity
- 24VDC Swing gate Operator - Commercial Grade Design
- 120/230V, 1 Phase, Optional 208/230/460/575VAC to an output voltage of 120VAC
- 13- 15 Sec / 90Deg to Open.
- Optional Heater
- Pre-Motion Warning Alarm
- Inherent Reversing sensor
- LMRRUL Monitored Photo Reflective Photo Eye
- Security 2.0 Radio Receiver Technology offers extended ranch with remote control
- LED Diagnostic Display
- Programmable Auxilliary Relays
- Solar-Ready Ultra-Reliable System
- Wireless Dual-Gate Communication
- HOMELINK Compatible
- Surge Suppression
- 7 Year Residential, 5 Year Commercial Warranty
Slide Gate Openers
Anchor Doors & Service provides several options of slide gate openers to keep your commercial business moving quickly and efficiently while making sure it remains safe and secure. Contact us to learn more.
RSL12UL - 12VDC Residential Light Commercial Slide Gate operator
- Reliable Solar-Ready, Battery Back-up Slide gate Opener
- MyQ Technology
- Wireless Dual-Gate Communication
- Security 2.0 Technology extends remote control range
- LMRRUL Monitored Retroreflective Photo Eyes
- S505AL Monitored Small Profile Resistive Edge
- Synchronized close
- QuickClose and Anti-Tailgate Operation
- Inherent Reversing Sensor
- LED Diagnostic Display
- HOMELINK Compatible
- 3 Year Warranty
SL3000UL - AC High Traffic Commercial Slide Gate Operator, for heavy traffic operations - MyQ Connectivity
½ HP AC Belt Drive Wi-Fi Garage Door Opener Premium Series
- Reliable Legacy elite heavy-duty commercial gear-driven transmission
- Limit switch design
- Surge Suppression
- Smart MyQ Technology
- Wireless Dual-Gate Communication
- Security 2.0 Technology extends remote control range
- LMRRUL Monitored Retroreflective Photo Eyes
- S505AL Monitored Small Profile Resistive Edge
- Synchronized close
- QuickClose and Anti-Tailgate Operation
- Inherent Reversing Sensor
- Pre-motion warning alarm
- LED Diagnostic Display
- HOMELINK Compatible
- 5 Year Commercial Warranty, 7 Year Residential Warranty
CSL24UL - 24DC High Traffic Commercial Slide Gate Operator ideal for most demanding slide gate environments.
Fire Department Compliant
- Reliable Battery Backup Commercial gear-driven transmission
- Smooth Start/Stop operation
- Limit switch design
- Smart MyQ Technology
- Wireless Dual-Gate Communication
- Security 2.0 Technology extends remote control range
- LMRRUL Monitored Retroreflective Photo Eyes
- S505AL Monitored Small Profile Resistive Edge
- Synchronized close
- QuickClose and Anti-Tailgate Operation
- Manual Disconnect
- Inherent Reversing Sensor
- LED Diagnostic Display
- HOMELINK Compatible
- 5 Year Commercial Warranty, 7 Year Residential Warranty
HDSL24UL - 24VDC Heavy-Duty Variable Speed Slide Gate Opener ideal for heavy gate and extreme applications
- Reliable move heavy gates up to 3000 lbs at 1ft/second
- Smooth Start/Stop operation
- Continuous -duty gate operation built with a custom heavy-Duty gearbox, size 70, direct-drive 40:1 gear ratio
- Custom 1.5 HP peak brushless DC Motor delivers up to 6 million cycles
- Smart MyQ Technology
- Wireless Dual-Gate Communication
- Security 2.0 Technology extends remote control range
- LMRRUL Monitored Retroreflective Photo Eyes
- S505AL Monitored Small Profile Resistive Edge
- Synchronized close
- QuickClose, Posi-Lock System, and Anti-Tailgate Operation
- Manual Disconnect
- Inherent Reversing Sensor
- LED Diagnostic Display
- HOMELINK Compatible
- 5 Year Commercial Warranty, 7 Year Residential Warranty
MyQ Connectivity Solutions for your Warehouse, Firehouse, Automotive Companies, and Gated Communities / Apartments.
Anchor Doors & Service Inc is proud to offer you and your company our Partner Connect Program. Our Dealer ID# 05162
We understand that you and your company are looking for a practical and more convenient solution to improve your business processes. We would like to offer you a chance to invest in the Lift-Master products with our MyQ connected Technology.
MyQ Smart Facility Acces
Is a cloud-based access management solution – adds connectivity to commercial door operators, dock levelers, and gate operators. Plus, facility and maintenance managers can experience total workplace visualization, providing enhanced knowledge and control of access points.
- Zero Downtime - Know right away when maintenance is needed and reduce annual maintenance costs
- Complete Control - Analyze and optimize productivity with intuitive control and monitoring capabilities for an increase in annual productivity.
- Savings & Compliance - Reduce liability by knowing when doors are open/closed for a reduction in annual energy costs
- Work Smarter - Get an analysis of commercial door, dock & gate activity, including information to help you make data-driven decisions about facility operations.
- Bolster your Business - Learn about operational outliers and which doors are costing too much.
- Prepare for Anything - Easily generate reports to demonstrate proof of safety and compliance (e.g. Food safety Modernization Act/FSMA)
- Improve your Insights - Assign permission-based access to team members to maintain insight into every access point.
- Take Control - Set and define alerts so your team can take immediate, corrective action
LMSC1000 RFID Long-Range Reader
- All LiftMaster Proprietary RFID tags work exclusively with our RFID Reader
- Reads RFID tags 20 – 30‘ away, reducing vehicle congestion
- Thoroughly tested to ensure RFID system works seamlessly with CAPXL, CAP2D, and myQ® Business™ Community to control your LiftMaster Gate Operators
- Dual-Purpose Vehicle RFID Tags (LMUNTG / SPLMUNTG) and Rearview Mirror RFID Hangtags (LMHNTG / SPLMHNTG) are available.
- Simple Distance Adjustments with RF dial on Wiegand module; no need for a laptop.
- Versatile Dual-Purpose RFID Tag can be mounted to headlamp or windshield (plastic or glass surfaces; no battery required).
- Durable application: able to withstand most climates, temperatures, and conditions, including car washes.
- Unique Identification applied to each tag for community and visitor traceability.
- Non-Transferable Dual-Purpose Tags are designed to break on removal to prevent RFID tags from being stolen or misused.
- Seamless Operation by LiftMaster proprietary RFID tags, working exclusively with our RFID Reader.
CPAXLV - Connected AccessPortal, High Capacity with Video
Key Features:
- Allows the resident to visually identify guests at the entrance and grant/deny access with the new “Community by myQ” app.
- Integrated camera with the high-definition interface; one-way video calling and two-way voice communication.
- Single Dashboard, single database, multiple communities from anywhere.
- Intuitive Interface with Picture-in-Picture. Touch display for superior resident and guest usability.
- Customizable Background on a 10", full-color, 720p high-definition screen.
- Remote Programming and activity monitoring using myQ Community Control.
- Configurable Email Notifications know when codes are overused or if service is needed for the CAPXLV, CAP2D, or Gate Operator.
- Eliminate Trenching with Wi-Fi® and wireless link to Liftmaster® Gate Operators.
- Voice Over IP (VoIP) provides digital call quality with no long-distance charges.
- Stainless Steel for a modern, durable design.
- Local System Memory allows residents to enter even when the internet is down.
- UL® 294 Listed.
- Get Alerted when a suspended code is used or if an active code is being overused.
- Real-Time Activity Tracking with myQ Community Control.
- Digital Video and 30-sec clip storage messaging(sendable clips for insurance, accountability).
- Cloud-Based Security keeps data protected and safeguards resident information.
Brochures
Commercial Overhead Door / Dock & Gate Accessories
Safety Devices
LMRRUL - Monitored Retro-Reflective Photo Eye
- Long Range Sensing distance up to 50 ft
- Requires power only on one side of the installation
- Meets UL 325 Safety Standards
LMTBU - Monitored Through Beam Photo Eye
½ HP AC Belt Drive Wi-Fi Garage Door Opener Premium Series
- Long-range powerful beam provides reliable performance
- Sensing distance up to 90 ft
- Anti-Fogging Lens
CPS-RPEN4 - Monitored Retro-Reflective Phtot EYe for Commerical Door Applications
Fire Department Compliant
- Polarized beam for use in applications with highly
- Reflective surfaces
- NEMA 4X enclosure protects against direct water
- Spray and corrosion
- Retro-reflective sensor with horizontal alignment
- For indoor/outdoor use
- The maximum range of 50 feet
- Available Accessories CPS3CARD - Interface Card provides an option for the second set of monitored photo eyes.
CPS-OPEN4 Monitored Dual-Sided Photo Eyes
- Flexible housing maintains alignment position after minor contact
- NEMA 4X enclosure protects against direct water spray and corrosion
- Dual-sided infrared sensors
- The maximum range of 45 feet
- Solid sensor lights indicate correct sensor alignment
- Polarized cables for proper signal continuity and feedback
- Meets UL 325 2010 safety standards
CPS-UN4 LiftMaster Commercial Protector System
Fire Department Compliant
- Dual-sided infrared sensors
- Heavy-duty housings and brackets
- The maximum range of 45 ft
CPS-U - Commercial Photo Eyes
041K0811 Interface Card, CPS3Card
Fire Department Compliant
- The 041K0811 Card (also called CPS3CARD) allows the addition of the second set of monitored photo eyes (CPS-U, CPS-OPEN4, CPS-RPEN4, or CPS-UN4) or a monitored edge (OES) to a Logic 5.0, L4, or L3 UL325 Operator.
- This is an optional Interface Card. For use with LiftMaster® Commercial Door Operator Photo Eyes (CPS-U) when the second set of monitored photo eyes or a monitored edge to a door opening is needed. Check the manual or replacement parts diagram for specific part information before ordering to ensure compatibility.
LC36M - Monitored Light Curtain
- LiftMaster’s® LC36M Monitored Light Curtains provide up to 33 ft. of protection range and a minimum of 36 in. of height coverage to keep your customers, employees, and equipment safe. The LC36M is a primary entrapment protection device and is installed along the vertical plane of the door. The light curtains are IP67 rated, which provides protection against direct water spray and makes the LC36M ideal for use in auto dealerships, fire stations, municipal garages, and commercial storage facilities.
Performance:
- Color-coded transmitter and receiver for easy identification.
- Each light curtain provides 36 in. of effective height coverage to increase the area of protection.
- Versatile installation options – standalone, double stacked, or pair with photo eyes for added protection.
- Maximum door width of 33 ft. ensures coverage for most commercial doors.
- Multiple sets of LC36M curtains can be mounted on a door providing coverage flexibility.
- Eight LEDs per side and 22 cross beams produce an invisible curtain of infrared light for maximum detection capability.
- Easy alignment with visible LEDs to indicate correct sensor alignment and interrupt detection.
NOTE: The LiftMaster LC36M is a primary monitored safety entrapment device that is compliant with UL 325. The LiftMaster CPS-UN4, CPS-RPEN4, CPS-OPEN4, CPS-U, and OES System also meet this requirement. Failure to use the appropriate sensor or failure to install the sensors properly may expose the installer and customer to liability, should an accident occur.

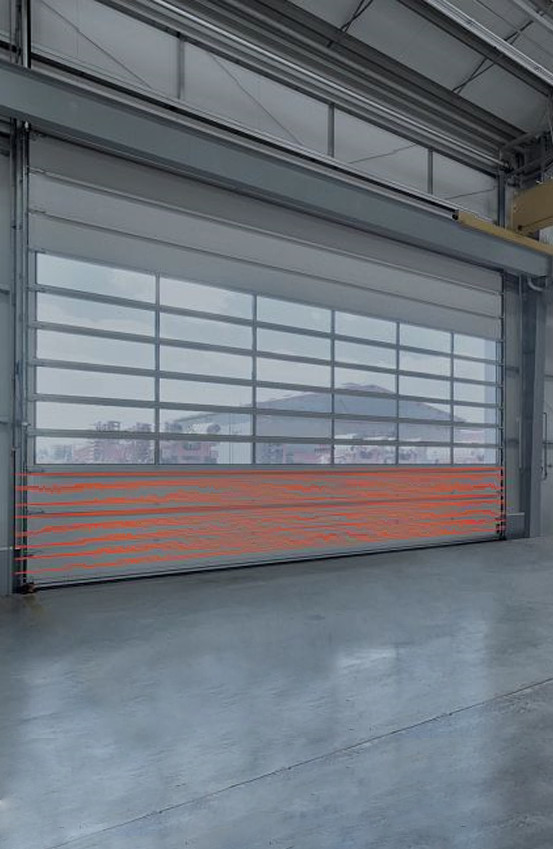

LC36A Light Curtain
Fire Department Compliant
- LiftMaster’s® LC36M Monitored Light Curtains provide up to 33 ft. of protection range and a minimum of 36 in. of height coverage to keep your customers, employees, and equipment safe. The LC36M is a primary entrapment protection device and is installed along the vertical plane of the door. The light curtains are IP67 rated, which provides protection against direct water spray and makes the LC36M ideal for use in auto dealerships, fire stations, municipal garages, and commercial storage facilities.
Performance:
- Color-coded transmitter and receiver for easy identification.
- Each light curtain provides 36 in. of effective height coverage to increase the area of protection.
- Versatile installation options – standalone, double stacked, or pair with photo eyes for added protection.
- Maximum door width of 33 ft. ensures coverage for most commercial doors.
- Multiple sets of LC36M curtains can be mounted on a door providing coverage flexibility.
- Eight LEDs per side and 22 cross beams produce an invisible curtain of infrared light for maximum detection capability.
- Easy alignment with visible LEDs to indicate correct sensor alignment and interrupt detection.
NOTE: The LiftMaster LC36M is a primary monitored safety entrapment device that is compliant with UL 325. The LiftMaster CPS-UN4, CPS-RPEN4, CPS-OPEN4, CPS-U, and OES System also meet this requirement. Failure to use the appropriate sensor or failure to install the sensors properly may expose the installer and customer to liability, should an accident occur.
LC36A Light Curtain
- LiftMaster’s® LC36M Monitored Light Curtains provide up to 33 ft. of protection range and a minimum of 36 in. of height coverage to keep your customers, employees, and equipment safe. The LC36M is a primary entrapment protection device and is installed along the vertical plane of the door. The light curtains are IP67 rated, which provides protection against direct water spray and makes the LC36M ideal for use in auto dealerships, fire stations, municipal garages, and commercial storage facilities.
Performance:
- Color-coded transmitter and receiver for easy identification.
- Each light curtain provides 36 in. of effective height coverage to increase the area of protection.
- Versatile installation options – standalone, double stacked, or pair with photo eyes for added protection.
- Maximum door width of 33 ft. ensures coverage for most commercial doors.
- Multiple sets of LC36M curtains can be mounted on a door providing coverage flexibility.
- Eight LEDs per side and 22 cross beams produce an invisible curtain of infrared light for maximum detection capability.
- Easy alignment with visible LEDs to indicate correct sensor alignment and interrupt detection.
NOTE: The LiftMaster LC36M is a primary monitored safety entrapment device that is compliant with UL 325. The LiftMaster CPS-UN4, CPS-RPEN4, CPS-OPEN4, CPS-U, and OES System also meet this requirement. Failure to use the appropriate sensor or failure to install the sensors properly may expose the installer and customer to liability, should an accident occur.
Control Stations
02103 - 3 Button Indoor Surface Mount Station (NEMA 1)
- Included with LiftMaster® Medium-Duty Commercial Operators
- OPEN/CLOSE/STOP allows complete control of the door
02111 - Indoor Single Pull Switch Control - Indoor Overhead Mt. (NEMA 1)
- Steel enclosure
- It May be used in two different ways; as an OPEN-only control (all LiftMaster operators) or as an OPEN/CLOSE control (only LiftMaster operators with types B2 and S2 control wiring).
- In the latter case, pulling the cord will open a fully closed door, close a fully opened door, and reverse a closing door. Pulling the cord while the door is opening will either have no effect (type B2 wiring) or will stop the door (Solid State Logic Control Board).
- WARNING: When used on most industrial operators, this control will not stop the door. Use another control that has a STOP button in conjunction with this control.
02411 Outdoor Single Pull Switch Control
- Single Pull Switch Control Outdoor Overhead Mt. (NEMA 4/12)
- Steel enclosure
- It May be used in two different ways: as an OPEN only control (all LiftMaster operators) or as an OPEN/CLOSE control (only LiftMaster operators with types B2 and S2 control wiring).
- In the latter case, pulling the cord will open a fully closed door, close a fully opened door, and reverse a closing door. Pulling the cord while the door is opening will either have no effect (type B2 wiring) or will stop the door (Solid State Logic Control Board).
- WARNING: When used on most industrial operators, this control will not stop the door. Use another control that has a STOP button in conjunction with this control.
02401 - 1 - Button Indoor Surface Mount Station (NEMA1)
- Die-cast metal enclosure
- START may be used as OPEN with all LiftMaster operators. It May be used as OPEN and CLOSE on all operators with type B2 control wiring
- WARNING: This control will not stop the door. Use another control that has a STOP button in conjunction with this control.
02-403-N4XALD - 3 Button Outdoor Control Station (NEMA4X) Polycarbonate Enclosure
- This is a 3-Button Control Station that allows momentary control of the commercial door operator. Check the manual or replacement parts diagram for specific part information before ordering to ensure compatibility.
- NEMA 4X 12/13 - Polycarbonate Metal Enclosure
- STOP/CLOSE/OPEN 3-Button Control Station
- Reference Dimensions: 2.0" x 5.27" x 2.68" (H x L x W)
- Compatible with various LiftMaster® Commercial Door Operators
02110 - Tamperproof Two-Position Key Switch
- Two Position Key Control Station with STOP button - Indoor Flush Mount (NEMA 1)
- Tamperproof Steel back box with an architectural aluminum faceplate and standard key cylinder
- OPEN/CLOSE spring return to center (OFF), key removable in center position only, with STOP button. Allows complete control of the door.
- May be used with all LiftMaster industrial operators.
02409 NEMA 4 Surface Mount Key Switch
- Two Position Key Control Station Outdoor Surface Mt. (NEMA 4/12)
- Tamperproof
- Die-cast metal enclosure with standard key cylinder
- OPEN/CLOSE spring return to center (OFF), key removable in center position only. Should only be used on operators wired for constant pressure to open and close (all LiftMaster industrial operators with type D control wiring).
- WARNING: When used on most industrial operators, this control will not stop the door. Use another control that has a STOP button in conjunction with this control.
G02407 NEMA 4/12 Key Switch
- Two Position Key Switch Control Station - Outdoor Surface Mount (NEMA 4/12)
- Non-Tamperproof
- Die-cast metal enclosure
- ON/OFF maintained key positions, key removable in either position. May be used to turn on or turn off other control equipment. Do not operate the door. May be used with all LiftMaster industrial operators.
KPR2000 Wired Keypad and Proximity Reader
- LiftMaster’s KPR2000 is a feature-rich keypad and proximity card reader access controller that is simple to install and looks great, making it an excellent choice for both Residential and Commercial applications. A secure and vandal-resistant enclosure with a gray powder-coated finish creates an upscale and stylish appearance. A multicolor LED Status Display and blue backlighting of the keys assure day or night visibility. Install the KPR2000 on any pedestal and pair it with a LiftMaster Gate or Commercial Door Operator for a superior complete access control solution.
Performance:
- The KPR2000 supports a maximum of 2,000 users in multiple access configurations (card only, 4 to 6 digit PIN only, or a combination of card and PIN). Supports HID 26 and 30-bit Wiegand proximity card formats.
- Designed for outdoor environments with a sealed, weatherproof design allowing you to easily mount anywhere.
- Functions as a Stand-Alone Controller or in Pass-Through Mode (Wiegand Keypad, Wiegand Proximity Credentials, ASCII Keypad).
- Latch Mode allows you to hold open a door or gate for an extended period of time.
- Rapid Programming and Block Enrollment capability, “Add” and “Delete” program cards included.
- Programmable Output Relay with adjustable contact time appropriate for Gate Operator, Commercial Door Operator, Door Strike, or Solenoid Lock.
- Capable of networking two KPR2000s, PPWR to the KPR2000 or most Access Control Systems.
Safety and Security:
- Rugged Vandal-Resistant Backlit Metal Enclosure to protect the casing from unwanted entry.
- Anti-Tamper Alarm alerts you when someone has attempted to open the case while powered.
- Integrated Alarm Buzzer and Output allows you to set additional security alarms.
KPW250- Wireless Commercial Keypad
- The KPW250 comes with a durable blue LED backlight metal keypad and a 5- year lithium battery.
- KPW250 is perfect for larger commercial applications such as a maintenance door entrance or gated entrance for a small business.
Features & Benefits:
- Compatible with Security+ 2.0, Security+, as well as Linear Multi-Code 300 MHz- making it the ideal cost-effective solution to minimize your inventory costs
- 250 permanent PINs and 10 unique temporary PINs mean flexibility to set up multiple users for commercial settings; unique temporary PINs can be set for 1 to 9 uses
- Allows for removal of a single PIN while maintaining full access for other users
- Zinc-alloy metal front cover for tough environments
- Blue backlit metal keypad makes it easy to use under low-light conditions
- Electronics are fully sealed and meet NEMA 4X water protection requirements
- A fully enclosed internal antenna means better protection from both vandalism and the elements
- An industry-leading 5-year lithium battery improves performance in cold weather (based on 25 activations per day)
- Easily surface mounted or on a standard pedestal
KPW5- Wireless Keypad
- The KPW5 comes with a durable blue LED backlight metal keypad and a 5-year lithium battery.
- KPW5 is perfect for residential gate access, including solar gate applications, as well as smaller commercial door and gate applications.
Features & Benefits:
- Designed to work exclusively with Security+ 2.0
- 5 permanent PINs and 10 unique temporary PINs, ideal for residential and small commercial applications; unique temporary PINs can be set for 1 to 9 uses
- Allows for removal of a single PIN while maintaining full access for other users
- High-impact polycarbonate front cover; perfect for rugged outdoor environment
- Blue backlit metal keypad makes it easy to use under low-light conditions
- Electronics are fully sealed and meet NEMA 4X water protection requirements
- A fully enclosed internal antenna means better protection from both vandalism and the elements
- An industry-leading 5-year lithium battery improves performance in cold weather (based on 25 activations per day)
- Easily surface mounted or on a standard pedestal
MK500GS MINIkey - Self-Contained Keypad System for Door & Gate Entrances; 500 Code Surface Mount
- The MINIkey is a self-contained keypad system for the control of door and gated entrances. For applications that require an entry and exit keypad, or for control of a secondary entry point, the MINIkey supports an optional remote keypad unit that connects directly to the main unit. Both the MINIkey and remote keypad units are engineered to be rugged and vandal-resistant and will enhance the site with a well-crafted look for interior or exterior use. They consist of a brushed stainless steel faceplate with a recessed side-lit metal keypad for excellent visibility day or night. Despite its compact size, the MINIkey is loaded with many features not normally found in other single door and gated entry access control systems.
Standard Features:
- Grained stainless steel
- Surface mount
- 500 capacity
- Variable entry code length
- Strikes & outs
- Two relays
- Programmable relay times
- Time clock input
- Non-volatile memory
- Lightning protection
- Lighted keypad
- Vandal-resistant design
- Relay hold
- Password protection
- 1-year warranty
878MAX KEYPAD
- Features Security+2.0™ rolling code technology
- One-button-to-close feature (works with all LiftMaster® garage door openers manufactured since 2006)
- Temporary password option
- Program code directly from the keypad
- Backlit keypad
- Includes 9V battery
- Compatible with all LiftMaster® garage door openers manufactured since January 1993
878MAX KEYPAD
- Features Security+2.0™ rolling code technology
- One-button-to-close feature (works with all LiftMaster® garage door openers manufactured since 2006)
- Temporary password option
- Program code directly from the keypad
- Backlit keypad
- Includes 9V battery
- Compatible with all LiftMaster® garage door openers manufactured since January 1993
Remote Controls
813LM Universal DIP 3-Button Remote Control
- Provides convenient access to gated communities, industrial facilities, and commercial sites with a remote control solution.
- Allows up to 4,096 codes with 12-positions dip programming.
894LT 4-Button Security+ 2.0® Learning Remote Control
- Easy to program
- Independent button programming
- Eliminates the need for multiple remotes
893MAX 3-Button Remote Control
- Operate up to 3 Garage Door Openers or myQ Light accessories.
- Safeguards your home with Security+ 2.0®.
- Compatible with all LiftMaster Garage Door Openers manufactured since January 1993.
891LM 1-Button Remote Control
- Operate one Garage Door Opener or Gate Operator.
- Controls a myQ®-enabled light accessory.
Accessories
FH2 Firehouse Accessory Package 2
This Firehouse Door Operator package includes:
- CPSIII | Additional set of Photo Eye Safety Sensors | Increase the level of safety of your system with a second set of sensors to monitor vehicles and high apparatus equipment.
- RGL24LY | Red/Green Light | Dramatically reduces the chance of damage to the door and engine, this light will change from flashing Red to solid Green when the door reaches the fully open position, indicating when it is clear to exit.
- TLS1CARD | Timer/Light/Status Card | Synchronizes the Red/Green Light operation to the LiftMaster Commercial Operator for consistent, reliable operation.
- 02-401M | Open Only Mushroom Button | Positioned where you want control of the system, this custom control panel sends the door to the fully open position and automatically enables the Timer-to-Close feature - perfect for time-sensitive situations.
- 850LM | Enhanced Universal Receiver | With 2 times the distance of standard receivers, this multi-frequency radio virtually eliminates the effect of interference.
- 813LM | 3-Button Remote Control | This extreme range remote works with the 850LM Receiver to give you an even greater distance when leaving on a call. Programmable for Open/Close/Stop Operation.
50-HERK2 Motion Detector
- Motion Detector Remote control for the LiftMaster® motion detector to conveniently choose from 8 different preset comfort functions, to adjust detection fields, mounting heights, relay hold interval, cross-traffic optimization, direction recognition, people/vehicle separation, slow motion detection, turn on/off filter functions, open the door manually and much more.
- Bidirectional
- Fine-tune the motion detector from the ground without guessing if all the settings have been received by the sensor
50-HERK-RC2 Motion Detector Remote Control
Motion Detector:
- Remote control for the LiftMaster® motion detector to conveniently choose from 8 different preset comfort functions, to adjust detection fields, mounting heights, relay hold interval, cross-traffic optimization, direction recognition, people/vehicle separation, slow motion detection, turn on/off filter functions, open the door manually and much more.
- Bidirectional
- Fine-tune the motion detector from the ground without guessing if all the settings have been received by the sensor
828LM Gateway
- The Internet Gateway adds smartphone control to any myQ enabled products including garage door openers, commercial door operators, gate operators and lighting. Allows users to check the status or control myQ products from anywhere so they never have to worry if the garage or gate was left open. Provides peace of mind to your customers as they will know the main access point to their home or business is secure.
- Check the status and control the garage door and myQ lights from anywhere.
- Receive real-time alerts when there is an activity with the garage door or myQ lights.
- Create schedules to close the garage door or to have lights turn on/off at designated times.
- Use with the myQ app on Android or iOS.
- Controls up to 16 MyQ enabled devices.
- LiftMaster myQ enabled garage door openers.
- myQ Control Panel (model 888LM) and myQ Lighting Controls (823LM and 825LM).

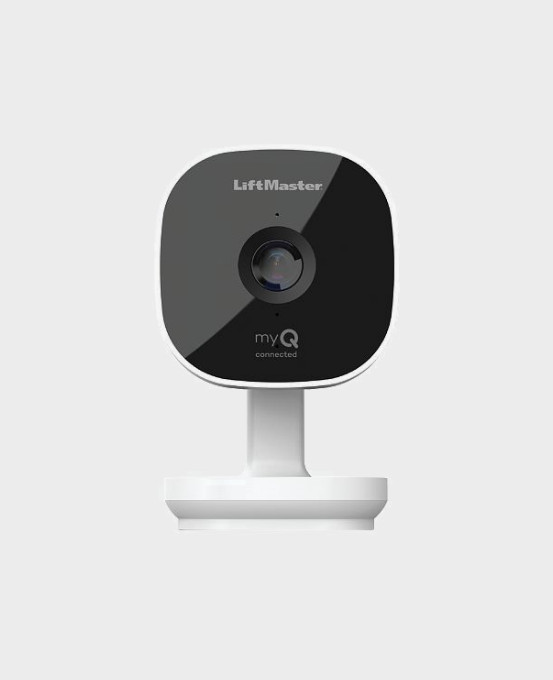

MYQ-SGC1WLM Smart Camera
- MyQ Connected: monitor the garage through a live feed or recorded event using the myQ app.
- The video camera begins recording when motion is detected.
- Easy setup with Bluetooth and magnetic mounting base.
- Enables secure in-garage delivery for Amazon Prime packages.
- Audio: Speaker, Microphone.
- Connectivity: 802.11 b/g/n (2.4GHz, 5GHz) WiFi.
- Field of View: 140 degrees diagonal.
- Mounting Base: Magnetic base for garage-door operator mount and hardware for a wall mount.
- Operating Temperature Range: -4 to 122⁰F.
- Power Supply: AC power adapter. Input 100-240V AC, 50/60Hz. Output 5V DC, 1.0A.
- Video: Up to 1080p at 30 frames/sec, h.264, night vision.
- The LiftMaster Smart Garage Camera™ is compatible with all myQ connected garage door openers. It works directly with all LiftMaster openers with the Wi-Fi logo and can work with most garage door opener brands manufactured after 1993 when paired with the myQ Smart Garage™ Control (821LMC-S).
- A myQ Video Storage Subscription allows you to record and save videos for up to 7 or 30 days. Tap into your video history to expand your knowledge and peace of mind.
MYQ-SGC1WLM Smart Camera
- MyQ Connected: monitor the garage through a live feed or recorded event using the myQ app.
- The video camera begins recording when motion is detected.
- Easy setup with Bluetooth and magnetic mounting base.
- Enables secure in-garage delivery for Amazon Prime packages.
- Audio: Speaker, Microphone.
- Connectivity: 802.11 b/g/n (2.4GHz, 5GHz) WiFi.
- Field of View: 140 degrees diagonal.
- Mounting Base: Magnetic base for garage-door operator mount and hardware for a wall mount.
- Operating Temperature Range: -4 to 122⁰F.
- Power Supply: AC power adapter. Input 100-240V AC, 50/60Hz. Output 5V DC, 1.0A.
- Video: Up to 1080p at 30 frames/sec, h.264, night vision.
- The LiftMaster Smart Garage Camera™ is compatible with all myQ connected garage door openers. It works directly with all LiftMaster openers with the Wi-Fi logo and can work with most garage door opener brands manufactured after 1993 when paired with the myQ Smart Garage™ Control (821LMC-S).
- A myQ Video Storage Subscription allows you to record and save videos for up to 7 or 30 days. Tap into your video history to expand your knowledge and peace of mind.
Commercial Operator Replacement Parts
Contact one of our Commercial Sales Team members for replacement parts pricing specific to your commercial operator. We have a wide assortment of replacement parts on hand.
Light Lens, Covers & End Panels
Call for more details
Commercial Service
Planned Maintenance Programs
Anchor Doors & Service specializes in Planned Maintenance Programs on all Overhead Door, Dock & Gate Equipment. Contact our Sales department to schedule your next PM inspection today. Based on equipment usage we may recommend the following frequency of inspections: Monthly, Quarterly, Semi-Annually, Annually, and Bi-Annually. We include inspections, and a detailed report of your door’s health, and recommended replacement parts. If you prefer to have all the work done at one time – No problem. We are here to help when it is convenient for you.
Replacement Parts & Service
Commercial Emergency Service
When it comes to an emergency we are here to help. Day or Night, Weekend or Holiday, Summer, or Winter we work all year round to solve your problem in a timely and efficient manner. Transform your expectations with our knowledgeable staff at Anchor Doors & Service Inc.
We service all makes and models of the following products:
- Sectional Overhead Doors
- Full View Overhead Doors
- Rolling Steel Doors
- Rolling Steel Fire Doors
- Rolling Steel Security Grills
- Mini Warehouse Sheet Doors
- Fire Rated and Security Counter Shutters
- Door & Gate Operators
- Roll-Up Truck Doors
- High-Speed Doors
- Traffic & Impact Doors
- Hollow Metal Doors
- PVC Strip Curtain Doors
Areas Of Service
For over 20 years, Windsor & Essex County, Chatham & Kent County has trusted Anchor Doors & Service for top quality garage door installation, replacement, and repairs from our industry professionals. Whether you have a malfunctioning door or operator, are remodeling and want to upgrade your garage door, or need a brand new installation for your recently-built new home, we offer top quality products and the best workmanship around. Discover why we are quickly becoming the most trusted resource for Residential and Commercial Garage Doors, Handicap Operators, Dock Levelers, Shelters, Seals and Dock Equipment.
If you don’t see your location listed below, please feel free to call our office and inquire about your particular service area. We are always available to answer any questions you may have, even after regular business hours!
- Tecumseh
- Windsor
- LaSalle
- Amherstburg
- Essex
- Lakeshore
- Comber
- Harrow
- Kingsville
- Leamington
- Chatham-Kent
- Stoney Point
- Kent Bridge
- Grande Pointe
- Dover Centre
- Wallaceburg
- Tupperville
- Dresdan
- Rodney
- West Lorne
- Oil Springs
- Brigden
- Sarnia
- Petrolia
- SAINT JOACHIM
- RUSCOM STATION
- TILBURY
- MERLIN
- THAMESVILLE
- BOTHWELL
Partners
Why Choose Us
Fully Trained And Certified
Same Day Service Available
Customer Satisfaction Guarantee
Working Showroom
Testimonial
“I cannot say enough good things about Anchor Doors. They were quick, courteous, and did a wonderful job assessing my issue and then replacing the weather stripping on my 2 garage doors. Mike was extremely punctual, knowledgeable, and professional. I would not hesitate to use Anchor again and will be recommending them to family and friends in the future.”
-Tracy Berger
Contact Us
Quick Links
Menu
Residential
Menu
Commerical
Menu
Automatic & Handicap Doors
Menu
Loading Docks
Menu
Tecumseh
- 13380 Sylvestre Dr. Tecumseh, ON N8N 2L9
- (519) 979-9299 1(888) 487-4446
- info@anchordoors.ca
Chatham
- 607 Bloomfield Road Chatham, ON N7M 5J5
- (519) 352-9699 1(888) 487-4446
- chathamsales@anchordoors.ca
Quick Links
Menu
Residential
Menu
Garage Doors Openers
Menu
Residential Garage Doors
Menu
Commerical
Menu
Follow us on,
Contact us
Tecumseh
- 13380 Sylvestre Dr. Tecumseh, ON N8N 2L9
- (519) 979-9299 1(888) 487-4446
- info@anchordoors.ca
Chatham
- 607 Bloomfield Road Chatham, ON N7M 5J5
- (519) 352-9699 1(888) 487-4446
- chathamsales@anchordoors.ca
Residential
Menu
Quick Links
Menu
Residential Garage Doors
Menu
Commerical
Menu
Loading Docks
Menu
Garage Doors Openers
Menu
Contact us
Tecumseh
- 13380 Sylvestre Dr. Tecumseh, ON N8N 2L9
- (519) 979-9299 1(888) 487-4446
- info@anchordoors.ca
Chatham
- 607 Bloomfield Road Chatham, ON N7M 5J5
- (519) 352-9699 1(888) 487-4446
- chathamsales@anchordoors.ca
Copyright © 2021 ANCHOR DOORS INC – All Rights Reserved
Menu
Contact us
-
13380 Sylvestre Dr.
Tecumseh, ON N8N 2L9 - 519.979.9299
- 1.888.487.4446
- info@anchordoors.ca
-
607 Bloomfield Road
Chatham, ON N7M 5J5 - 519.352.9699
- 1.888.487.4446
- chathamsales@anchordoors.ca
